起源の場所:
中国
ブランド名:
COOPER
証明:
ISO/CCC
モデル番号:
半平床式トレーラーのトレーラー

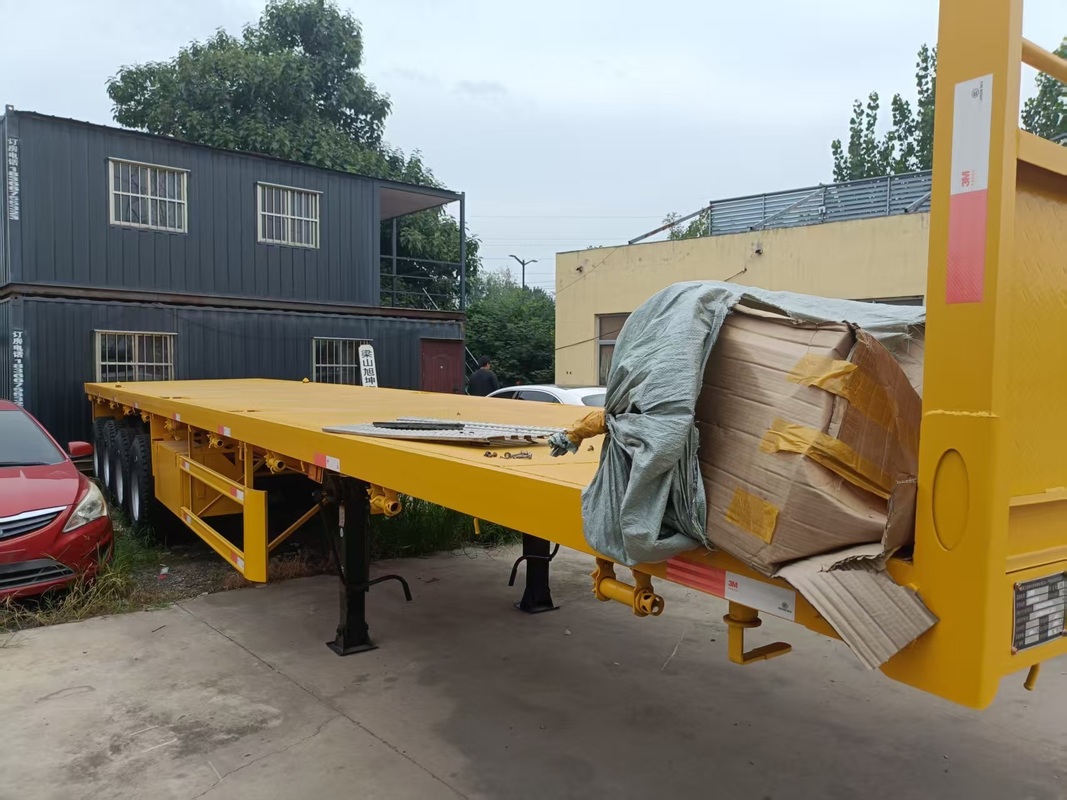

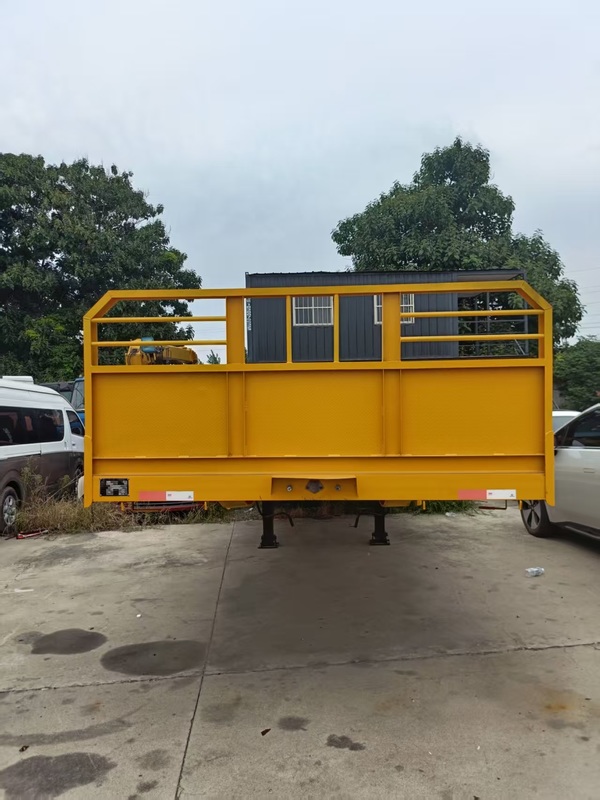

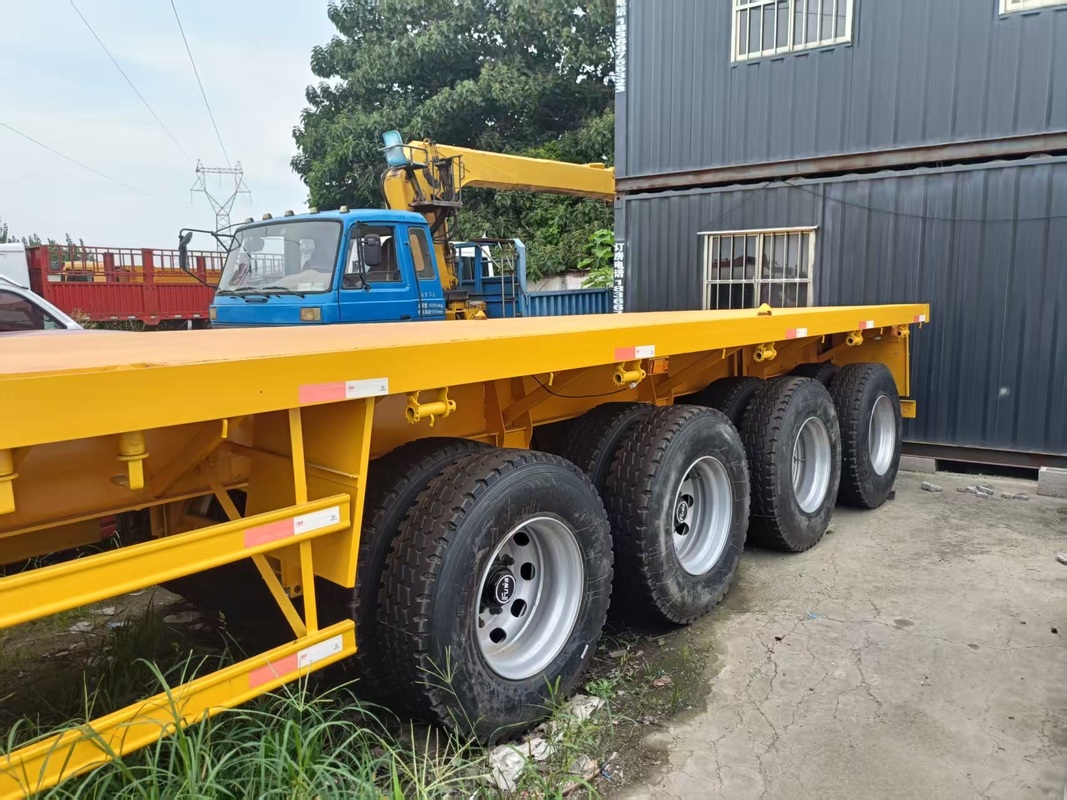

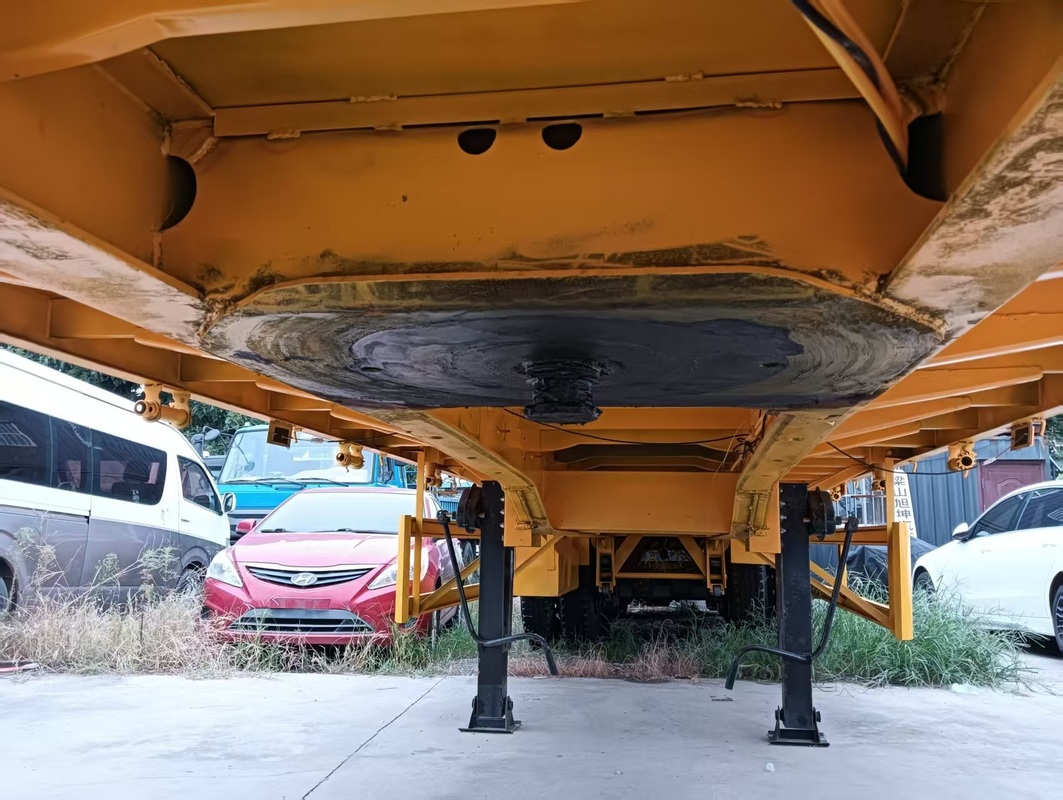

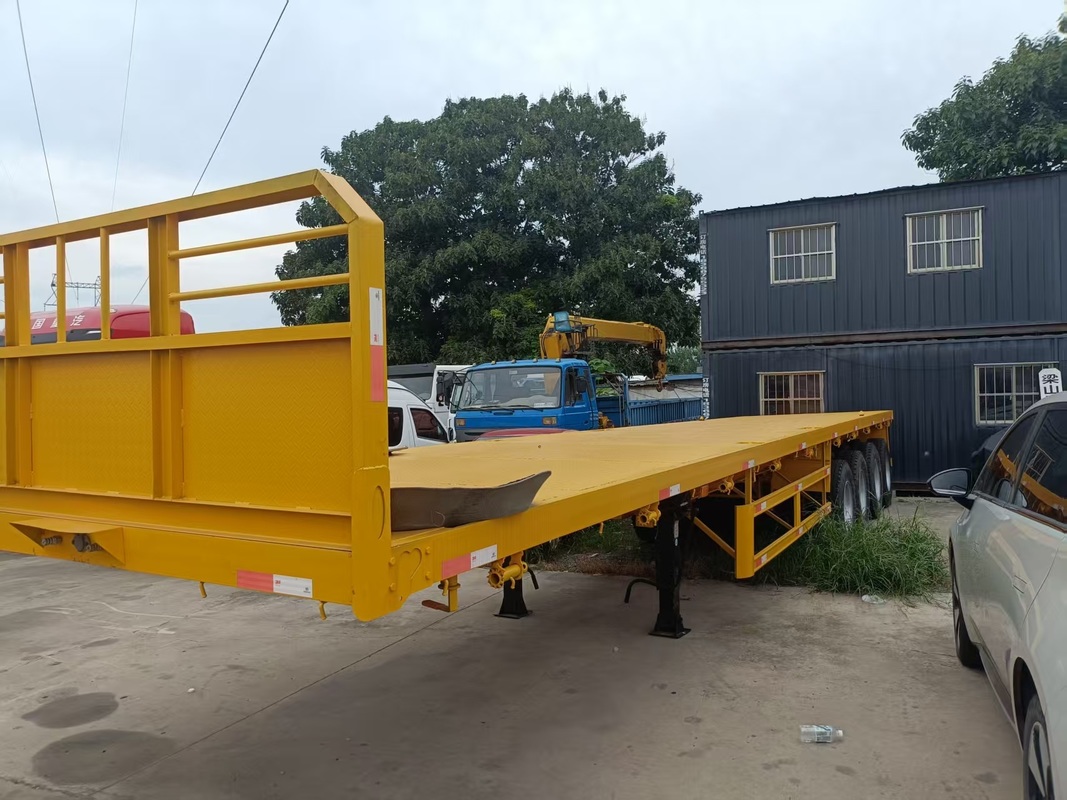

40T Loading Capacity Second Hand Flat Bed Semi Trailers 13m Made in China
| Name | carbon steel flat bed Semi trailer | ||||
| Loading capacity | 40T | ||||
| Size | 13000x2550x1600mm | ||||
|
Chassis (I beam)
|
Top flange plate | Material and thickness | Q345B 14mm | ||
| Bottom flange plate | Material and thickness | Q345B 16mm | |||
|
Middle flange plate |
Material | Q345B | |||
| Thickness | 8mm | ||||
| Height | 500mm | ||||
|
Side beam height |
Type | U steel | |||
| Bending parts | |||||
| Height | 16# U steel | ||||
|
Floor |
Material | Carbon steel Q235 | |||
| Thickness | 3mm | ||||
| Floor type | Checkered plate | ||||
|
Running mechanism
Running mechanism
|
Container twist lock | 12pcs for 1x40ft and 2x20ft container | |||
|
Axle |
|||||
| Type | 13t | ||||
| Number | 3pcs | ||||
| Rim | Type | 9.0-22.5 | |||
| Number | 12 pcs | ||||
|
Tire |
Brand | Taitong brand | |||
| Type | 12R22.5 | ||||
| Number | 16pcs | ||||
| Suspension | Mechanical suspension | ||||
|
Spring leaf |
Leaf width | 90mm | |||
| Leaf thickness | 13mm | ||||
| Layer/set | 10 Layer | ||||
| King pin | Type | Bolts type | |||
| Diameter | 2 inch | ||||
|
Brake system |
Air tank | 40L air tanks | |||
| Brake chamber | 4double spring brake chamber | ||||
| ABS | Without | ||||
|
Landing gear |
Brand | Zhongli brand | |||
| Type | 28T two speed | ||||
|
Accessories
|
Spare tire carrier | 2sets | |||
| Light | LED light | ||||
| Voltage | 24v | ||||
| Receptacle | 7 ways(7wire harness)and quick change type | ||||
| Tool box | One piece,1000x500x500mm | ||||
| Painting | Polyurethane paint&anti-rust primer&sand blasting | ||||
| Tools for trailer | Head wrench ;spare wheel crank ; | ||||
